Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE HEADLIGHT CLEANER CONTROL RELAY
    1. Disconnect the connector.

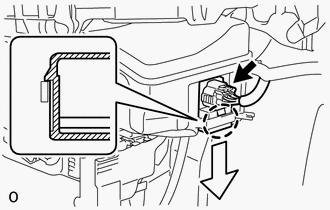

      GTY401099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the headlight cleaner control relay as shown in the illustration.
