Unlock Position Sensor Signal Circuit [09/2015 - ]: Wiring Diagram

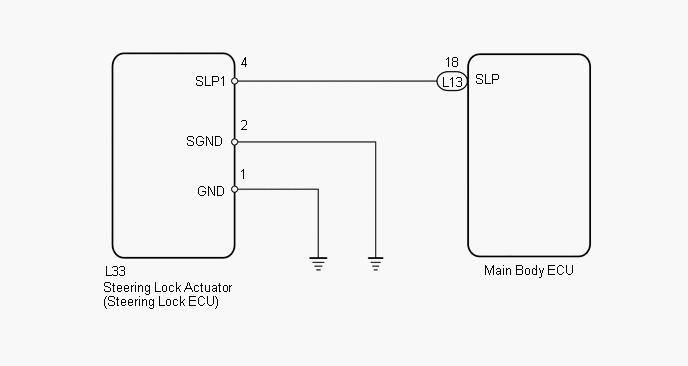

Fig 1: Unlock Position Sensor Signal Circuit Diagram

GTY685070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
