DTC B1774: Pressure Sensor Circuit Malfunction; DTC B1775: Pressure Sensor Power Source Circuit Malfunction [09/2015 - ]: Procedure
- CHECK FOR DTC
- Turn the engine switch on (IG).
- Clear the DTCs stored in the occupant classification ECU (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Clear the DTCs stored in the center airbag sensor (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG).
- Check for the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ]
).
OK
DTCs B1774 and B1775 are not output.
HINT:
Codes other than DTCs B1774 and B1775 may be output at this time, but they are not related to this check.
Result: OK
OK
USE SIMULATION METHOD TO CHECK
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
Result: NG
NG
See step 2
- CHECK CONNECTION OF CONNECTOR
- Turn the engine switch off.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the occupant classification ECU and the occupant detection sensor.
OK
Connectors are properly connected.
Result: NG
NG
CONNECT CONNECTORS PROPERLY
Result: OK
OK
See step 3
- CHECK CONNECTOR
- Disconnect the connectors from the occupant classification ECU and the occupant detection sensor.
- Check that the connectors (on the center airbag sensor and occupant detection sensor side) are not damaged.
OK
Connectors are not deformed or damaged.
Result: NG
NG
REPLACE FRONT SEAT WIRE RH
Result: OK
OK
See step 4
- CHECK FRONT SEAT WIRE RH
- Connect the negative (-) terminal cable to the battery.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition e10-6 (PS) - Body ground Engine switch on (IG) Below 1 V e10-7 (VPS) - Body ground e10-15 (GPS) - Body ground - Turn the engine switch off.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

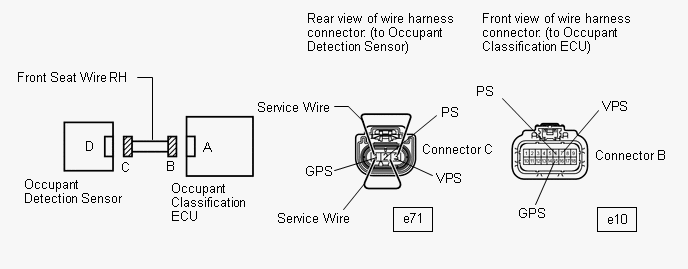

- Using 2 service wires, connect terminals 3 (VPS) and 1 (GPS), and connect terminals 2 (PS) and 1 (GPS) of connector C.NOTE:
Do not forcibly insert the service wires into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e10-6 (PS) - e10-7 (VPS) Always Below 1 Ω e10-7 (VPS) - e10-15 (GPS) - Disconnect the service wires from connector C.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e10-6 (PS) - Body ground Always 1 MΩ or higher e10-7 (VPS) - Body ground e10-15 (GPS) - Body ground e10-6 (PS) - e10-15 (GPS) e10-7 (VPS) - e10-15 (GPS)
Result: NG
NG
REPLACE FRONT SEAT WIRE RH
Result: OK
OK
See step 5
- Connect the negative (-) terminal cable to the battery.
- CHECK FOR DTC
- Connect the connectors to the occupant classification ECU and the occupant detection sensor.
- Connect the negative (-) terminal cable to the battery.
- Turn the engine switch on (IG).
- Clear the DTCs stored in the occupant classification ECU (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Clear the DTCs stored in the center airbag sensor (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG).
- Check for the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ]
).
OK
DTCs B1774 and B1775 are not output.
HINT:
Codes other than DTCs B1774 and B1775 may be output at this time, but they are not related to this check.
Result: OK
OK
USE SIMULATION METHOD TO CHECK
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
Result: NG
NG
See step 6
- REPLACE FRONT SEAT CUSHION ASSEMBLY (OCCUPANT DETECTION SENSOR)
- Turn the engine switch off.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Replace the front seat cushion assembly (with occupant classification ECU and occupant detection sensor) (Refer to DISASSEMBLY [09/2015 - ]
).
HINT:
Perform the inspection using parts from a normal vehicle if possible.
- Connect the negative (-) terminal cable to the battery.
- Turn the engine switch on (IG).
- Clear the DTCs stored in the occupant classification ECU (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Clear the DTCs stored in the center airbag sensor (Refer to DATA LIST / ACTIVE TEST [09/2015 - ] )
- Turn the engine switch off.
- Turn the engine switch on (IG).
- Check for the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ]
).
OK
DTCs B1774 and B1775 are not output.
HINT:
Codes other than DTCs B1774 and B1775 may be output at this time, but they are not related to this check.
Result: NEXT
NEXT
See step 7
- PERFORM ZERO POINT CALIBRATION
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Using the Techstream, perform zero point calibration (Refer to INITIALIZATION [09/2015 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG).
- Clear the DTCs stored in the memory (Refer to DTC CHECK / CLEAR [09/2015 - ]
).
HINT:
If DTCs are not cleared at this time, past DTCs will remain.
Result: NEXT
NEXT
See step 8
- CHECK FOR DTC
HINT:
Check that the zero point calibration is completed normally. If one of the following conditions is met, DTC B1797 will be output (refer to INITIALIZATION (Refer to INITIALIZATION [09/2015 - ] ):
- Zero point calibration is performed when the conditions for the calibration are not satisfied.
- Zero point calibration has failed.
- Turn the engine switch on (IG).
- Clear the DTCs stored in the occupant classification ECU (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Clear the DTCs stored in the center airbag sensor (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
- Turn the engine switch off.
- Turn the engine switch on (IG).
- Check for the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ]
).
OK
DTC B1797 is not output.
Result: NG
NG
Go to DTC B1797
(Refer to DTC B1797: Calibration Malfunction [09/2015 - ] )
Result: OK
OK
See step 9
- PERFORM SENSITIVITY CHECK
- Perform the sensitivity check (Refer to INITIALIZATION [09/2015 - ] ).
Result: NEXT
NEXT
END
