ECM Power Source Circuit [09/2015 - ]: Wiring Diagram

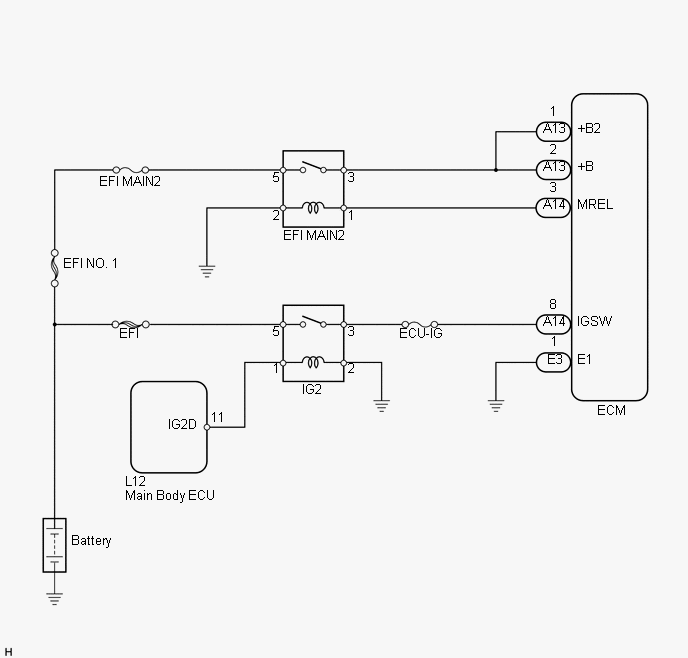

Fig 1: L12 Main Body ECU - Wiring Diagram

GTY281527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
