Driver Side Junction Block Inner Circuit

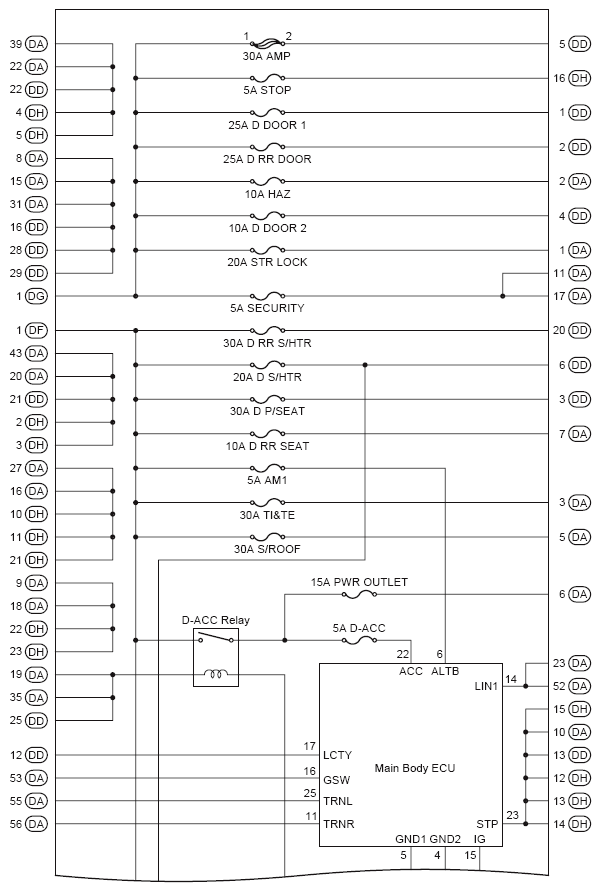

Fig 1: Driver Side J/B Inner Circuit Diagram (1 Of 2) With Relays
G08940487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D-ACC Relay

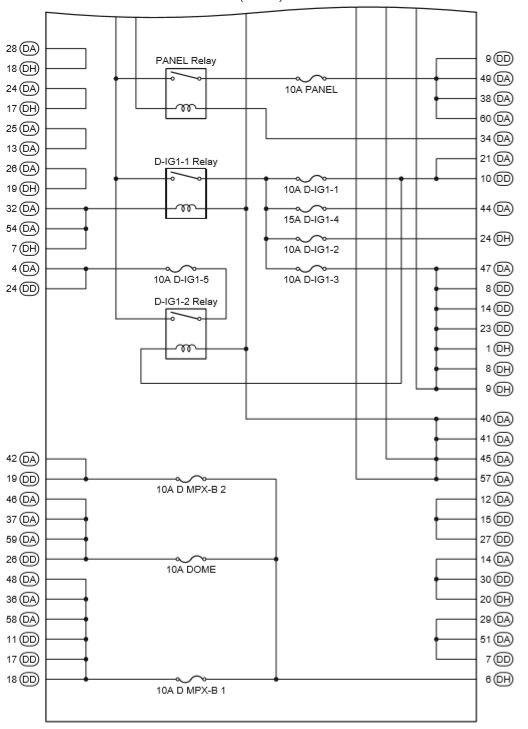

Fig 2: Driver Side J/B Inner Circuit Diagram (2 Of 2) With Relays
G00584300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Panel Relay
D-IG1 Relay
D-IG2 Relay
