Home >> Lexus >> 2017 >> LS 460 Base, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Power Window Control System - Diagnostic Codes & Symptom Tests >> Symptom Tests >> Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [09/2015 - ] >> Wiring Diagram

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [09/2015 - ]: Wiring Diagram

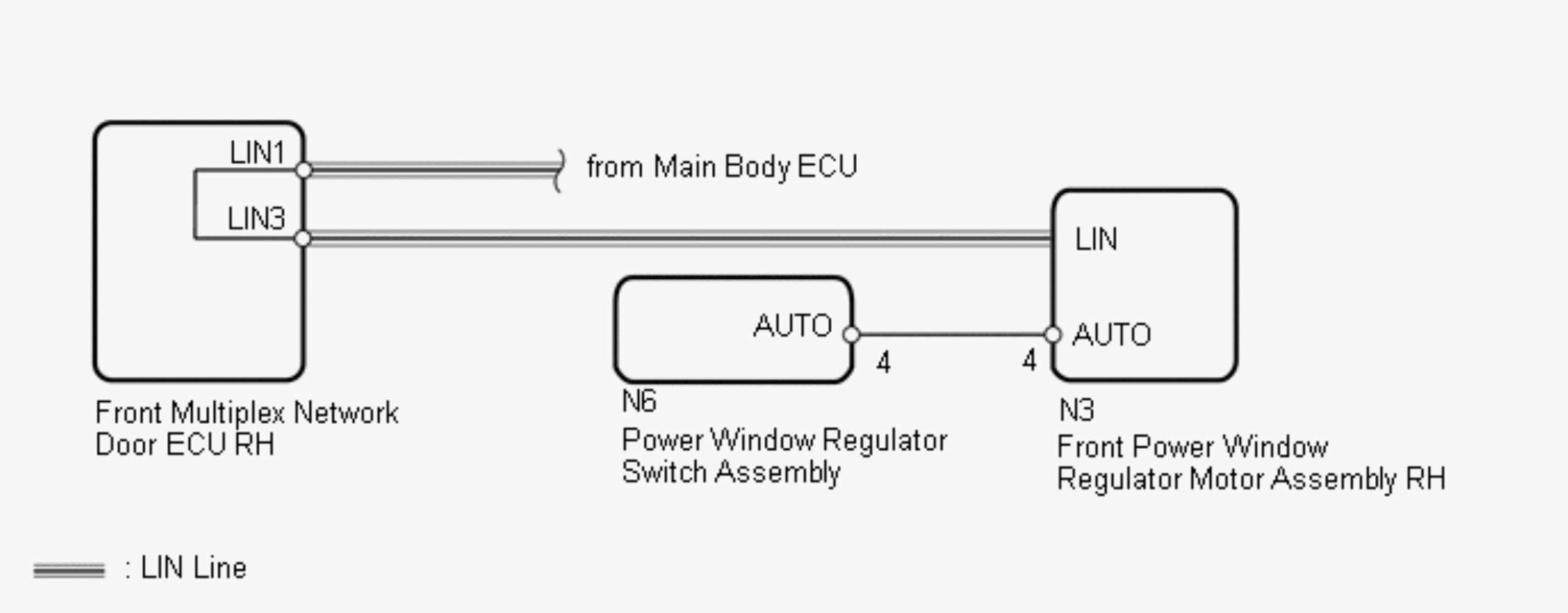

Fig 1: Master Switch LIN Communication Circuit Diagram
GTY617897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
