Smart Access System (Keyless Start) - Diagnostic Codes & Symptom Tests
>>
Smart Access System With Push-Button Start
>>
DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction [09/2015 - ]
>>
Wiring Diagram
DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction [09/2015 - ]: Wiring Diagram

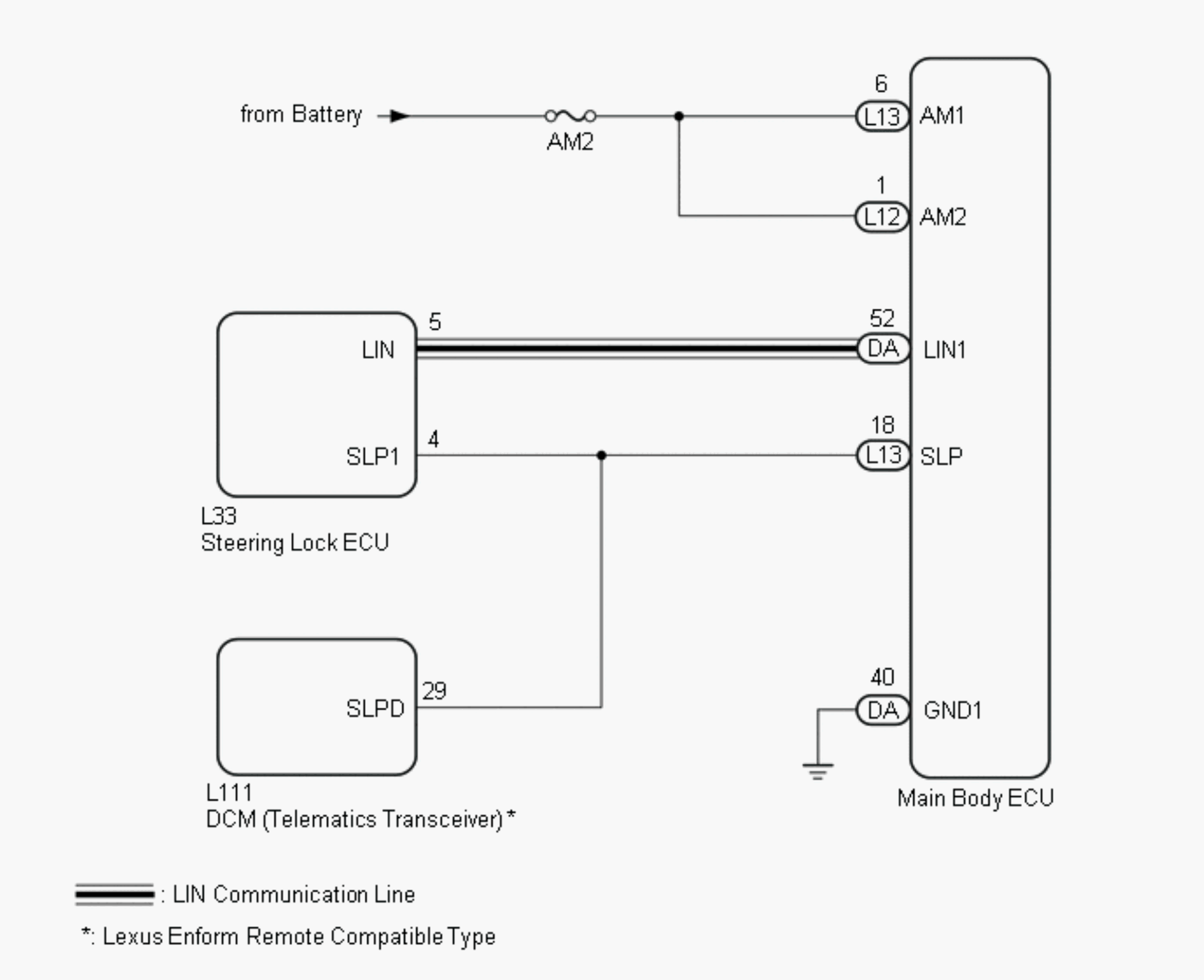

Fig 1: Steering Lock ECU Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
