Installation [09/2015 - ]: Procedure

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY

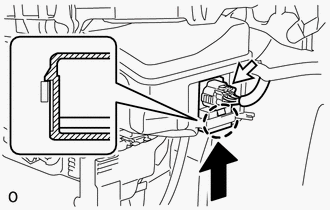

    1. Attach the claw to install the headlight cleaner control relay as shown in the illustration.
      GTY401100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  3. ADJUST FOG LIGHT AIMING (w/ Fog Light)
    1. for Sport Package:

      (Refer to ADJUSTMENT [09/2015 - ] )

    2. except Sport Package:

      (Refer to ADJUSTMENT [09/2015 - ] )
