DTC B2405: Sub Bus LIN Module Communication Malfunction [09/2015 - ]: Wiring Diagram

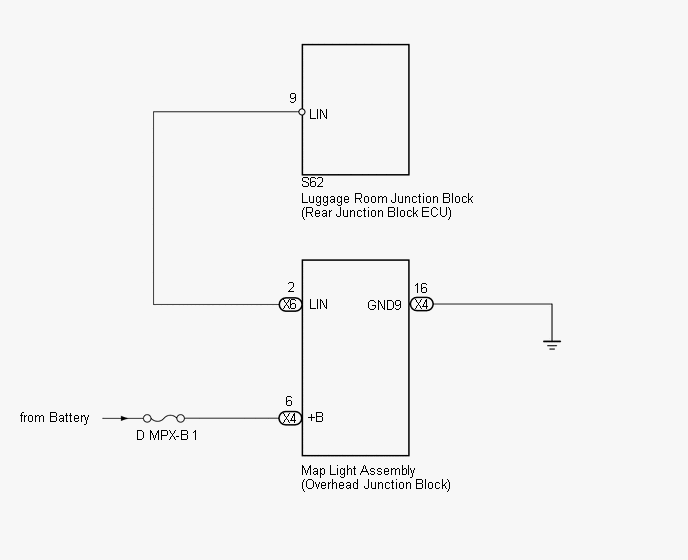

Fig 1: Luggage Room Junction Block (Rear Junction Block ECU) Circuit Diagram
GTY650127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
