Multi-media Module Receiver Assembly Communication Stop Mode [09/2015 - ]: Wiring Diagram

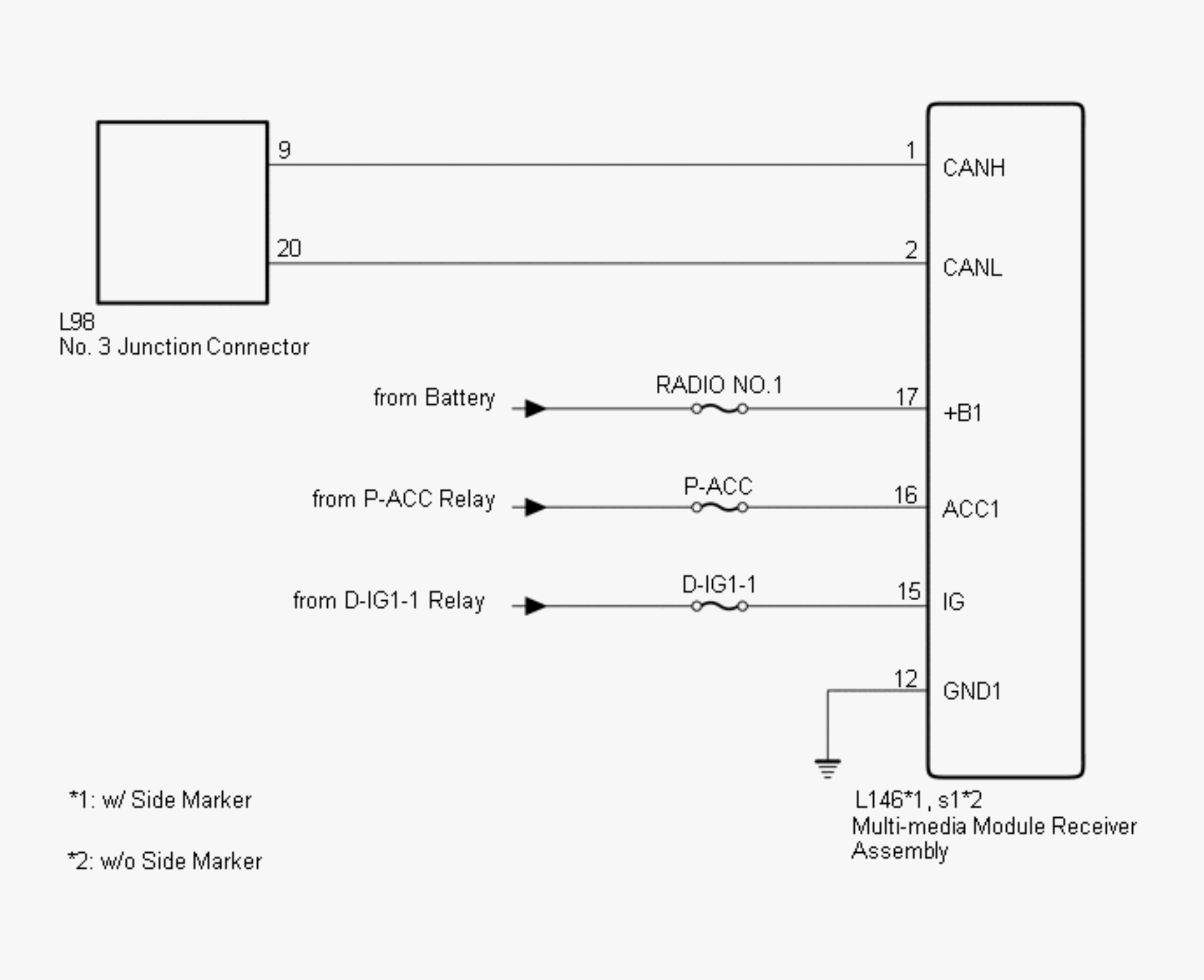

Fig 1: Multi - Media Module Receiver Assembly Circuit Diagram

GTY680036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
