DTC U0131: Lost Communication with Power Steering Control Module [09/2015 - ]: Wiring Diagram

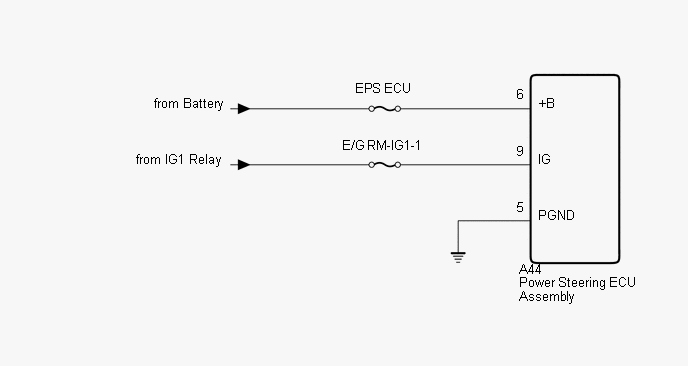

Fig 1: Power Steering ECU Circuit Diagram

GTY419333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
