DTC U0130: Lost Communication with Steering Effort Control Module [09/2015 - ]: Wiring Diagram

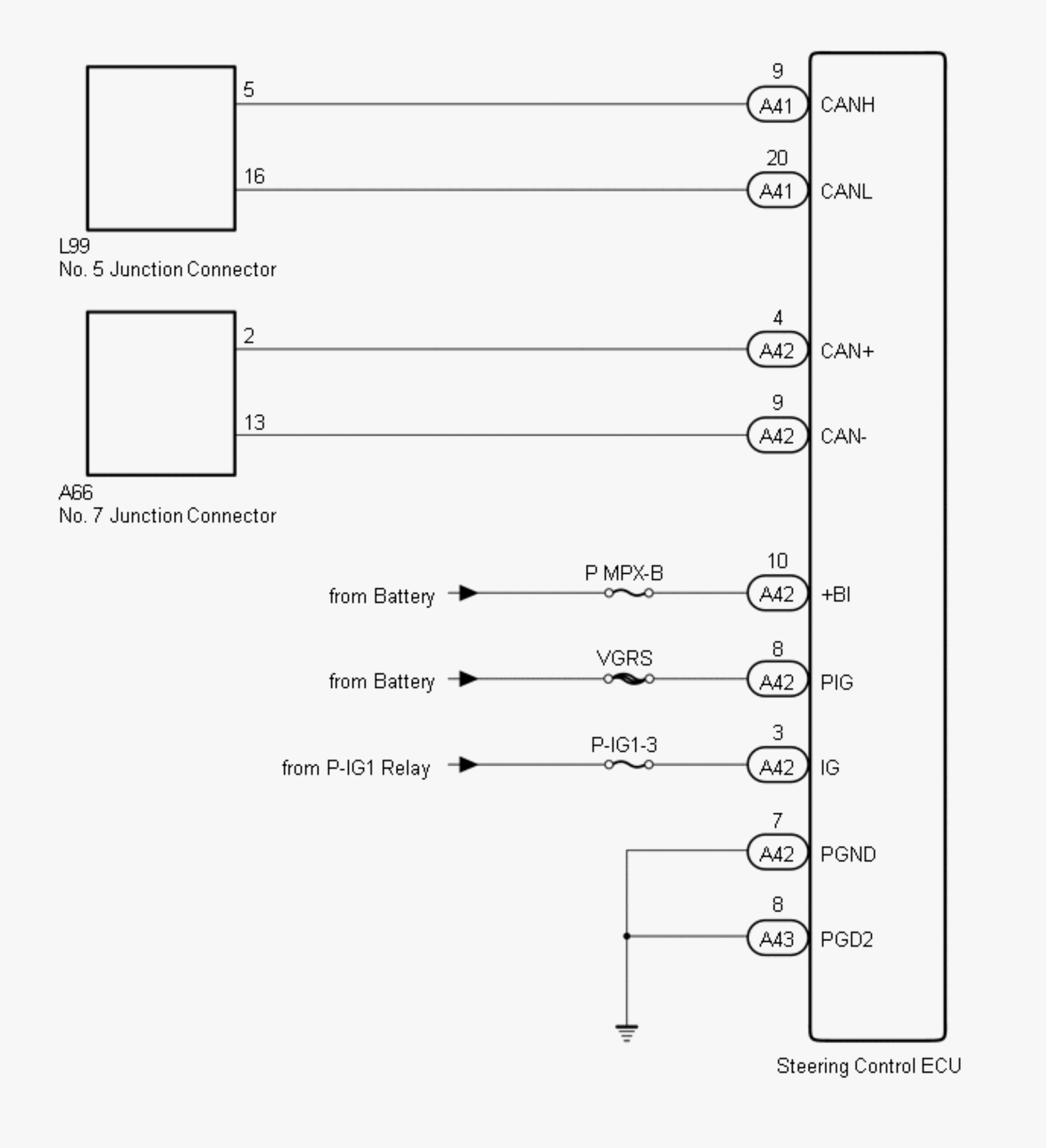

Fig 1: Steering Control ECU Circuit Diagram

GTY612920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
