DTC U0126: Lost Communication with Steering Angle Sensor Module [09/2015 - ]: Wiring Diagram

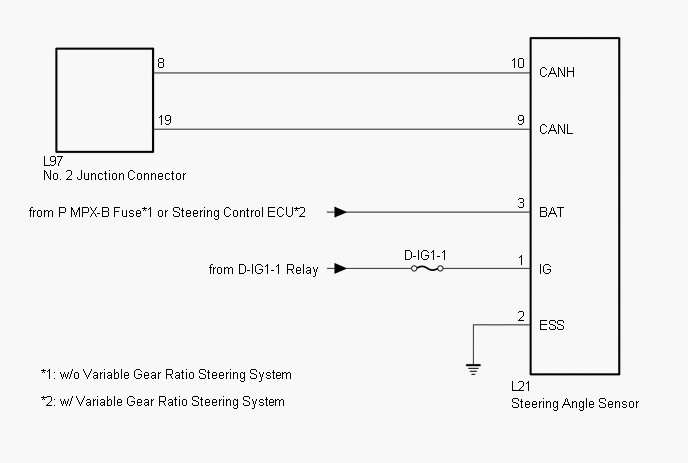

Fig 1: Steering Angle Sensor Circuit Diagram

GTY411396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
