DTC U0122: Lost Communication with Vehicle Dynamics Control Module; DTC U0129: Lost Communication with Brake System Control Module [09/2015 - ]: Wiring Diagram

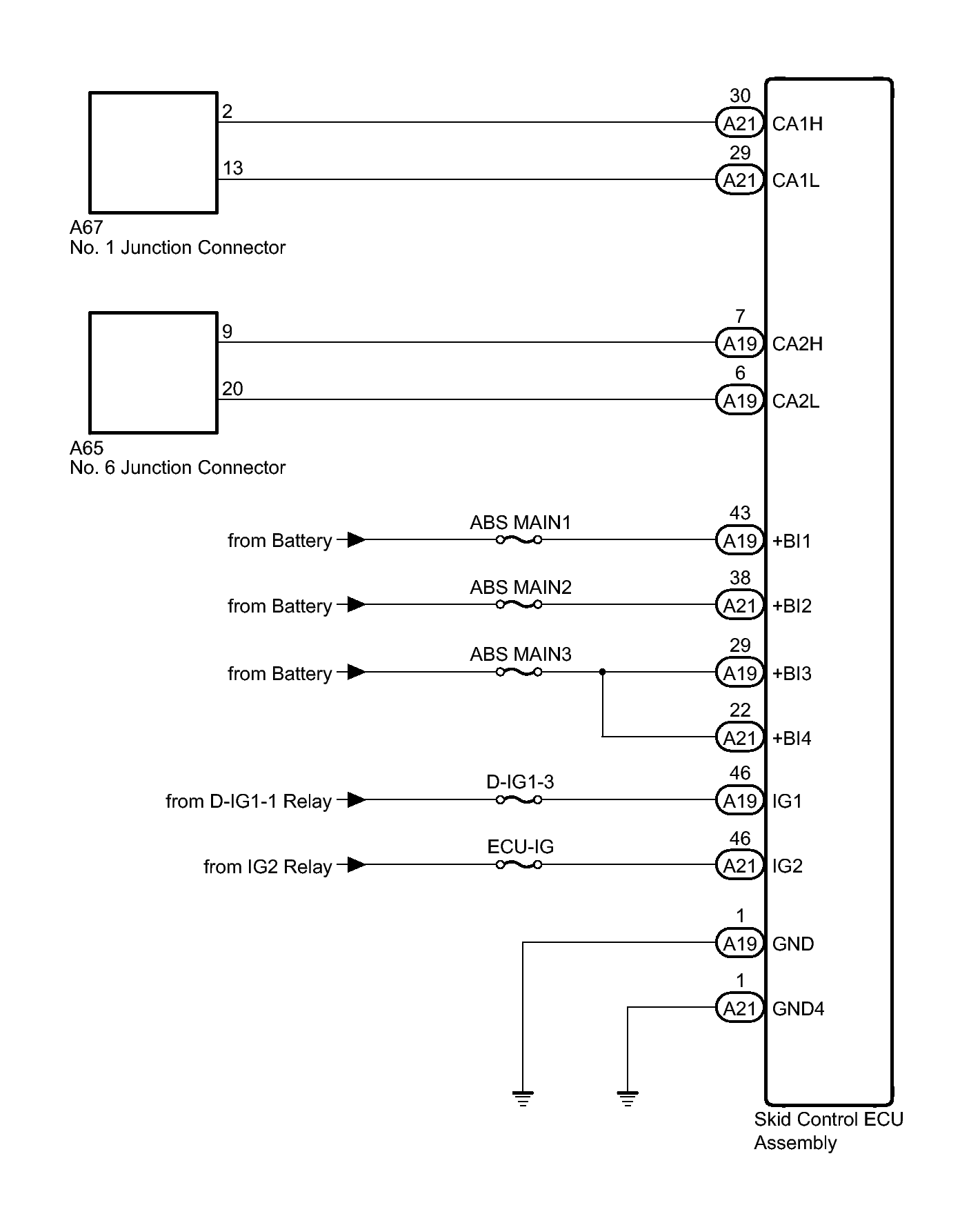

Fig 1: Skid Control ECU Circuit Diagram
GTY418927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
