Engine Switch Indicator Circuit [09/2015 - ]: Wiring Diagram

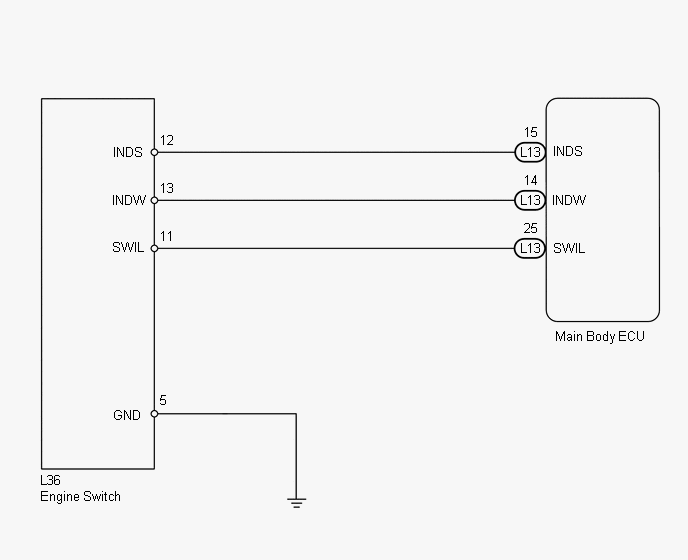

Fig 1: Engine Switch Circuit Diagram

GTY663905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
