Installation [04/2013 - ]: Procedure
- INSTALL ABSORBER CONTROL ACTUATOR

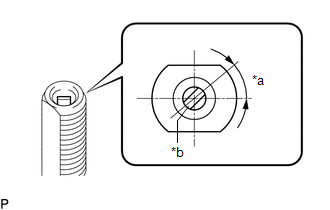

- Check that the control rod of the front shock absorber assembly is in the position shown in the illustration.
*a 40° *b Control Rod NOTE:If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position before installing the absorber control actuator.

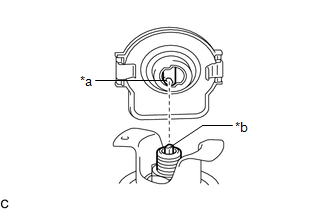

- Install the absorber control actuator to the front actuator support bracket.
*a Absorber Control Actuator Output Shaft *b Control Rod NOTE:Make sure to check that the absorber control actuator output shaft and control rod are securely connected.

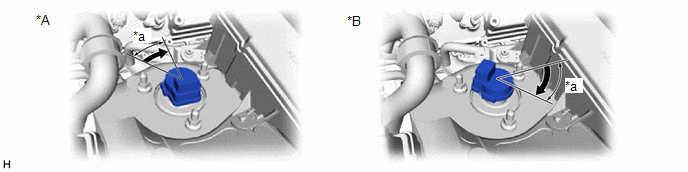

- Turn the absorber control actuator clockwise 40° until a click is felt.
*A for 2WD *B for AWD *a 40° - - NOTE:- Before turning the absorber control actuator, make sure to check that the absorber control actuator output shaft and control rod are securely connected.
- Do not turn the absorber control actuator more than 40°.
- Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
- Check that the control rod of the front shock absorber assembly is in the position shown in the illustration.
- INSTALL UPPER SHOCK ABSORBER CAP
- Install the wire harness to the upper shock absorber cap.
- Connect the connector.
- Install the upper shock absorber cap with the 3 nuts.
Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
