Components [04/2013 - ]

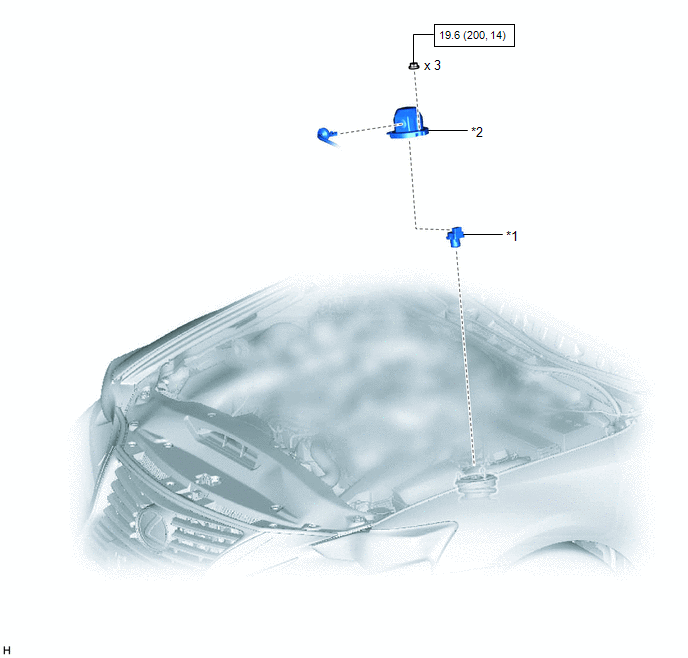

Fig 1: Absorber Control Actuator (For Front Side) Replacement Components With Torque Specifications
GTY465961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ABSORBER CONTROL ACTUATOR *2 UPPER SHOCK ABSORBER CAP
N.m (kgf/cm, ft.lbf): Specified torque - -
