Removal [04/2013 - 10/2016]: Procedure

Refer to REMOVAL [04/2013 - ]

1. Disconnect each connector from the spiral cable with sensor sub-assembly.
2. w/ Steering Heater:
   1. Disconnect the connector from the steering wheel heater control assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the steering wheel assembly set nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Put matchmarks on the steering wheel assembly and steering main shaft.

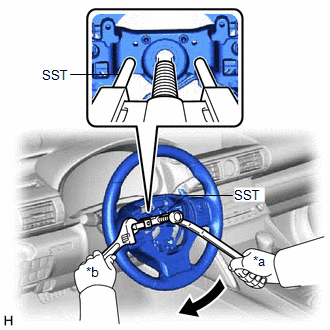

5. Using SST, remove the steering wheel assembly.
   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05070

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

See step  2

Refer to PROCEDURE - Step 2

1. Remove the cruise control switch wire.

1. Remove the 4 screws, and separate the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 5 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp.
3. Disconnect the connector and remove the steering wheel heater control assembly from the lower steering wheel boss cover.

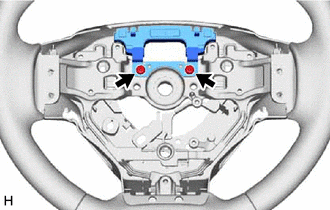

1. Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
