Components [10/2016 - ]

Fig 1: Steering Wheel Replacement Components With Torque Specifications [10/2016 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

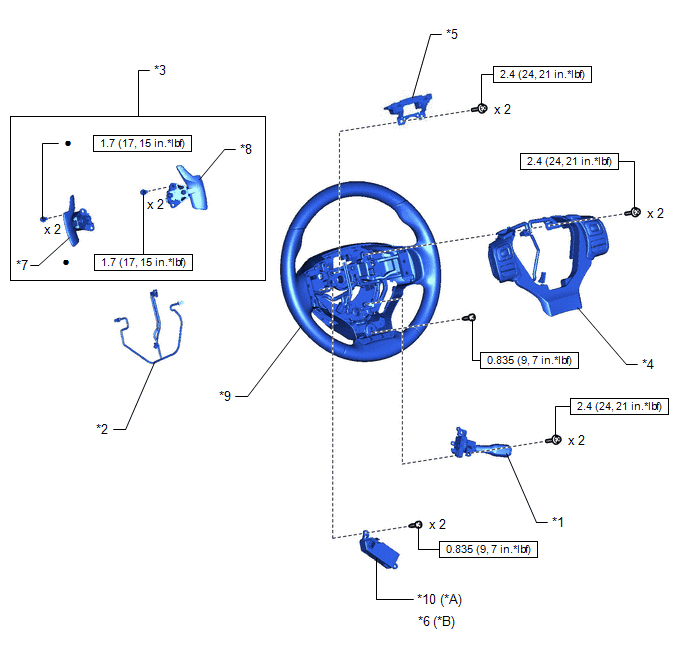

Fig 2: Steering Wheel Replacement Components With Torque Specifications [10/2016 - ] (2 Of 2)

*A	w/o Steering Heater	*B	w/ Steering Heater
*1	CRUISE CONTROL MAIN SWITCH	*2	NO. 1 SWITCH WIRE
*3	SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)	*4	STEERING PAD SWITCH ASSEMBLY
*5	STEERING SHAKE DAMPER	*6	STEERING VIBRATION AND HEATER ECU
*7	SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) LH	*8	SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) RH
*9	STEERING WHEEL SUB-ASSEMBLY	*10	STEERING VIBRATION ECU
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
