Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

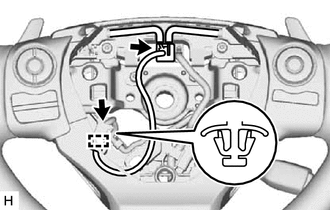

    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
      GTY460652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the steering pad switch connector clamp from the lower steering wheel boss cover.
    3. Disconnect the steering pad switch connector from the No. 1 switch wire.

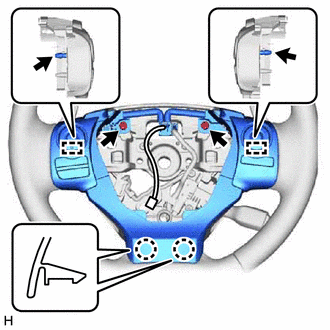

    4. Remove the 2 screws.
      GTY460653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 claws and 2 pins to remove the steering pad switch assembly from the steering wheel sub-assembly.
