Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - 09/2020]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 2 [10/2016 - 09/2020]

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020]

  4. REMOVE FRONT PANEL GARNISH LH

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020]

  5. REMOVE FRONT PANEL GARNISH RH

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020]

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020]

  7. REMOVE STEERING HEATER SWITCH (REFRESHING SEAT SWITCH)

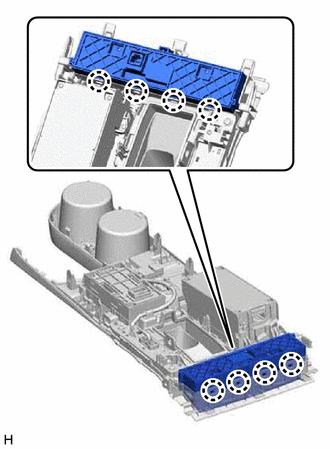

    1. Disengage the 8 claws to remove the steering heater switch (refreshing seat switch) from the console panel sub-assembly.
      GTY467333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
