Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING WHEEL HEATER CONTROL ASSEMBLY

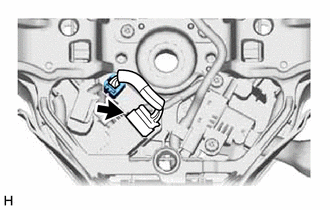

    1. Disconnect the connector from the steering wheel heater control assembly.
      GTY460651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

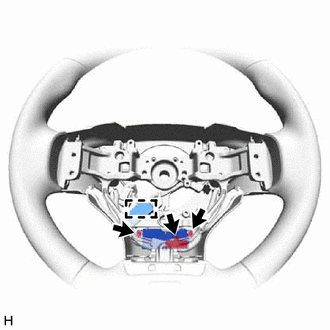

    2. Remove the 2 screws.
      GTY460395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.
    4. Disconnect the connector and remove the steering wheel heater control assembly from the lower steering wheel boss cover.
