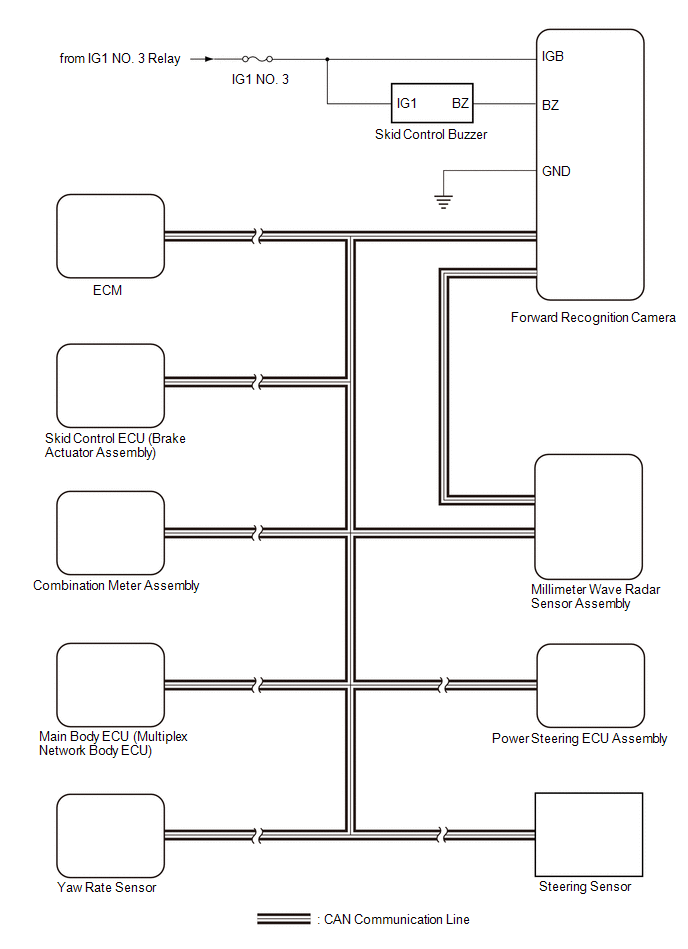

Home >> Lexus >> 2017 >> IS 350 Base, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Pre-Collision System - Diagnostics - Introduction >> Pre-Collision System >> System Diagram [09/2020 - ] >> System Diagram [09/2020 - ]
