Parts Location [10/2017 - 09/2020]: Illustration

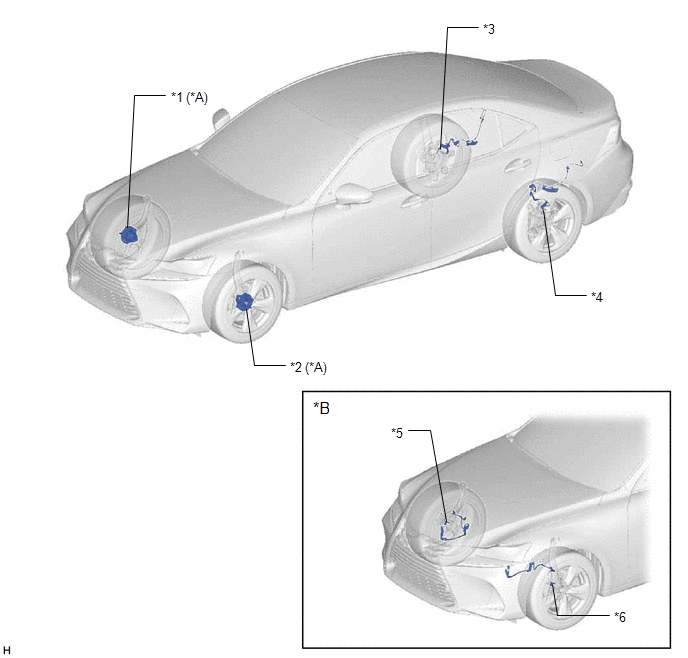

| *A | for 2WD | *B | for AWD |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR RH |
*2 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR LH |
| *3 | REAR SPEED SENSOR RH | *4 | REAR SPEED SENSOR LH |
| *5 | FRONT SPEED SENSOR RH | *6 | FRONT SPEED SENSOR LH |

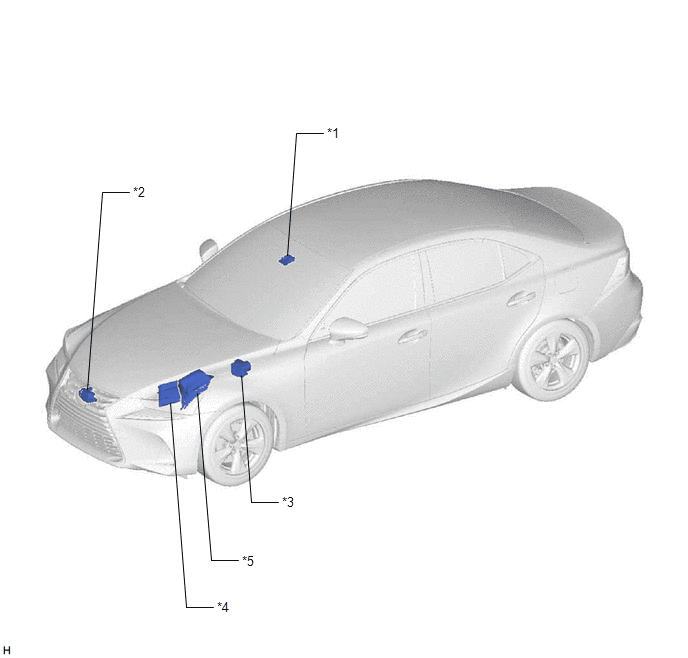

| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |
| *5 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STOP LIGHT RELAY (SEMICONDUCTOR POWER INTEGRATION ECU) - RADAR-IG FUSE |
- | - |

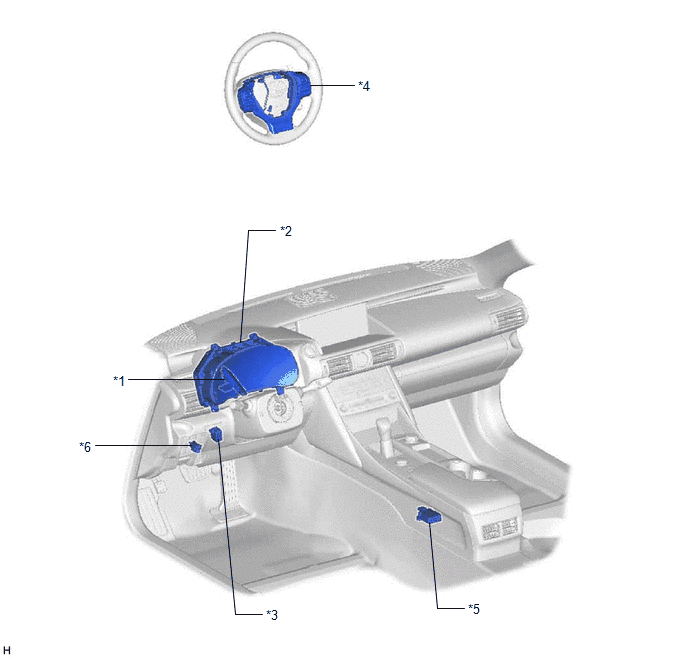

| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - PCS WARNING LIGHT |
| *3 | SKID CONTROL BUZZER | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | YAW RATE SENSOR | *6 | DLC3 |

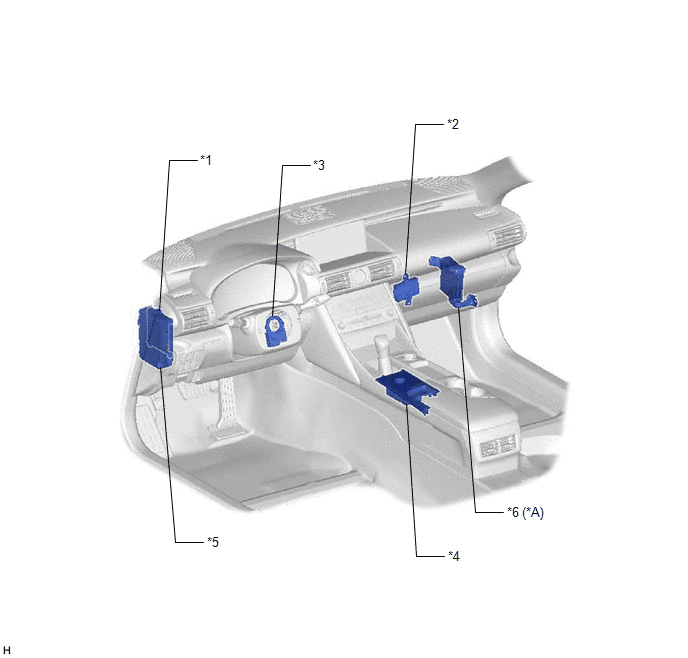

| *A | w/ Adaptive Variable Suspension System | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *3 | STEERING SENSOR | *4 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE - ECU IG1 NO. 2 FUSE |
*6 | ABSORBER CONTROL ECU |
