Parts Location [04/2013 - 10/2016]: Illustration

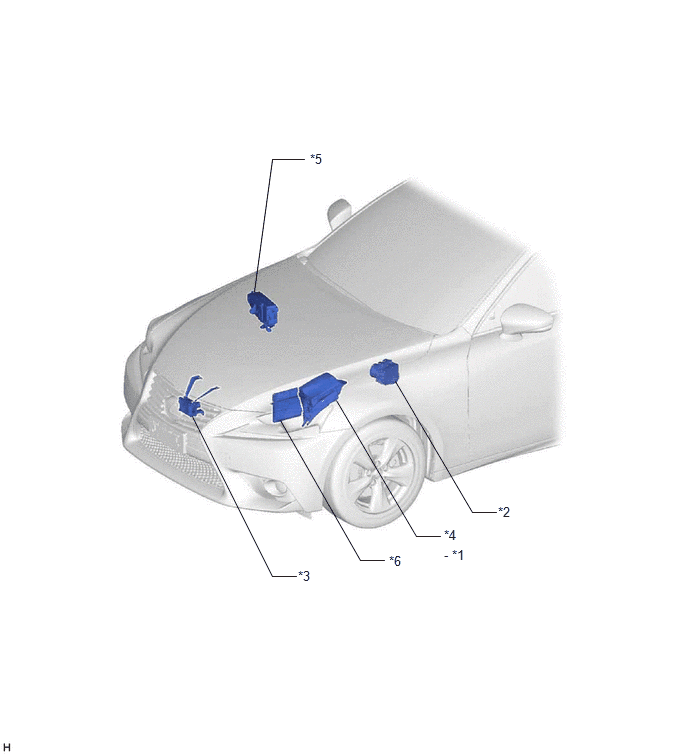

| *1 | SEMICONDUCTOR PWR INTEGRATION ECU | *2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - ENG-IG NO. 2 FUSE - RADAR-IG FUSE - IG1 MAIN RELAY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/I-B FUSE |
*6 | ECM |

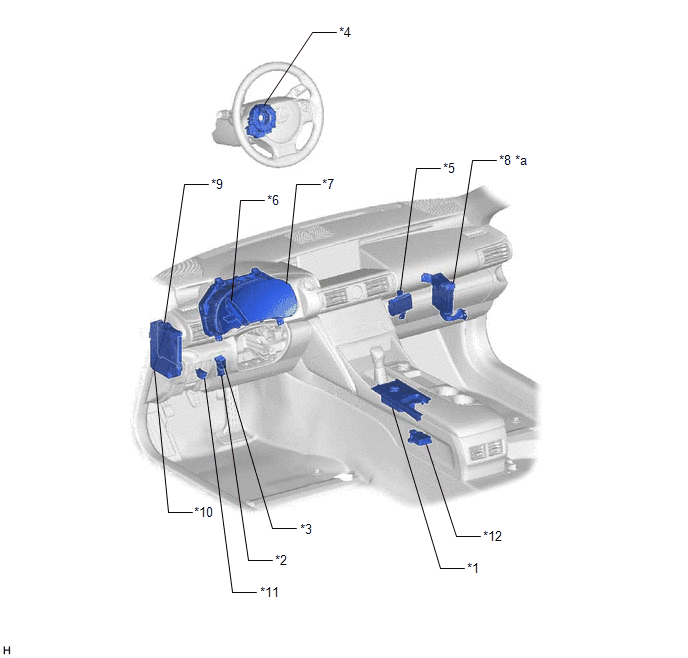

| *1 | COMBINATION SWITCH ASSEMBLY (VSC OFF SWITCH) | *2 | PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY |
| *3 | SKID CONTROL BUZZER ASSEMBLY | *4 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *5 | NETWORK GATEWAY ECU | *6 | DRIVING SUPPORT ECU ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | ABSORBER CONTROL ECU |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - IG1 NO. 3 FUSE - IG1 NO. 3 RELAY |
| *11 | DLC3 | *12 | YAW RATE SENSOR |
| *a | w/ Adaptive Variable Suspension System | - | - |
