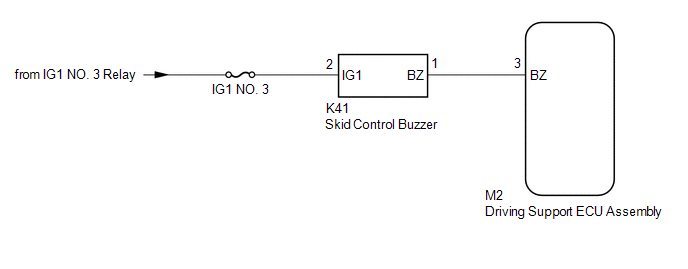

DTC C1A4A: Skid Control Buzzer Circuit [10/2016 - 09/2020]: Wiring Diagram

GTY671347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
