Home >> Lexus >> 2017 >> IS 350 Base, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostic Codes & Symptom Tests >> Power Window Control System >> DTC B2312: Power Window Switch Malfunction [04/2013 - ] >> Wiring Diagram

DTC B2312: Power Window Switch Malfunction [04/2013 - ]: Wiring Diagram

GTY466718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

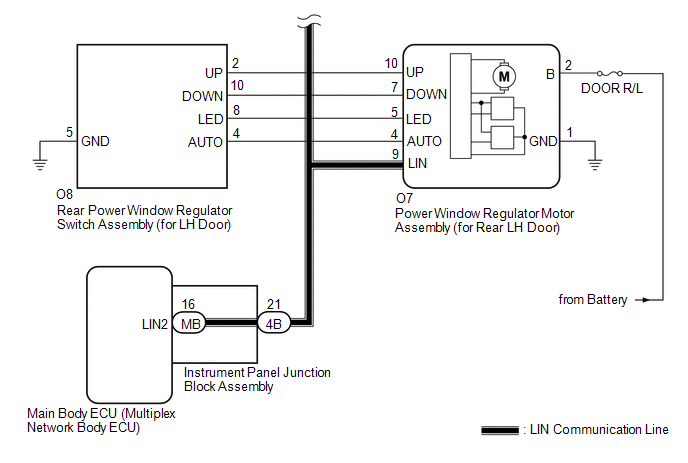

GTY466456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
