Installation [04/2013 - ]: Procedure

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.

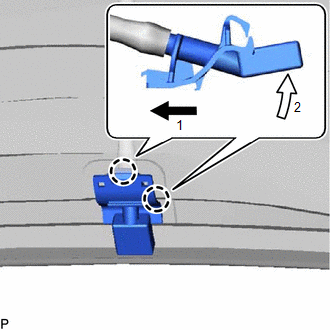

    2. Engage the 2 claws to install the washer nozzle sub-assembly as shown in the illustration.
      GTY457948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to ON-VEHICLE INSPECTION [04/2013 - ]

  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to ADJUSTMENT [04/2013 - ]
