Wiper System / Washer System - Service Information
>>
Washer Motor
>>
Components [10/2016 - 11/2021]
Components [10/2016 - 11/2021]

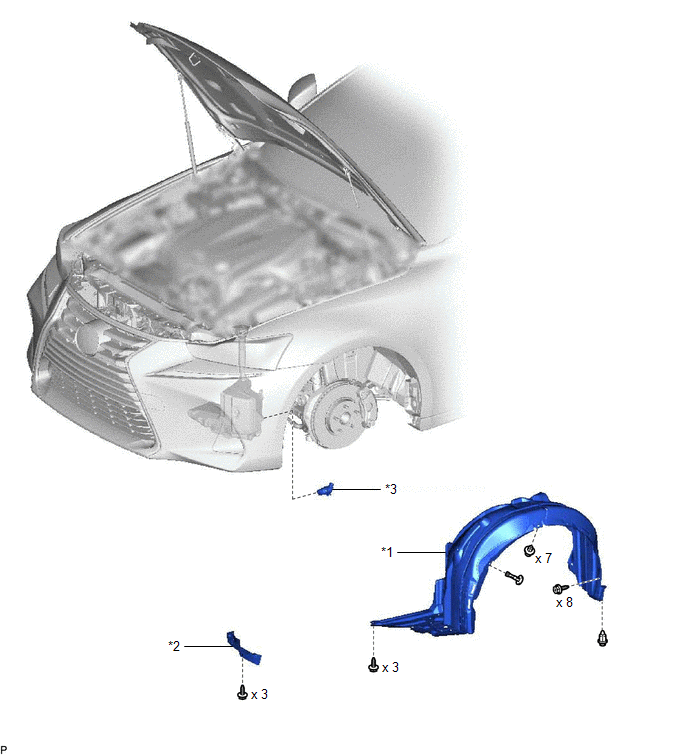

Fig 1: Washer Motor Replacement Components [10/2016 - 11/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER LINER LH
*2
FRONT WHEEL OPENING EXTENSION PAD LH
*3
WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
-
-
