Wiper System / Washer System - Service Information
>>
Washer Motor
>>
Components [04/2013 - 10/2016]
Components [04/2013 - 10/2016]

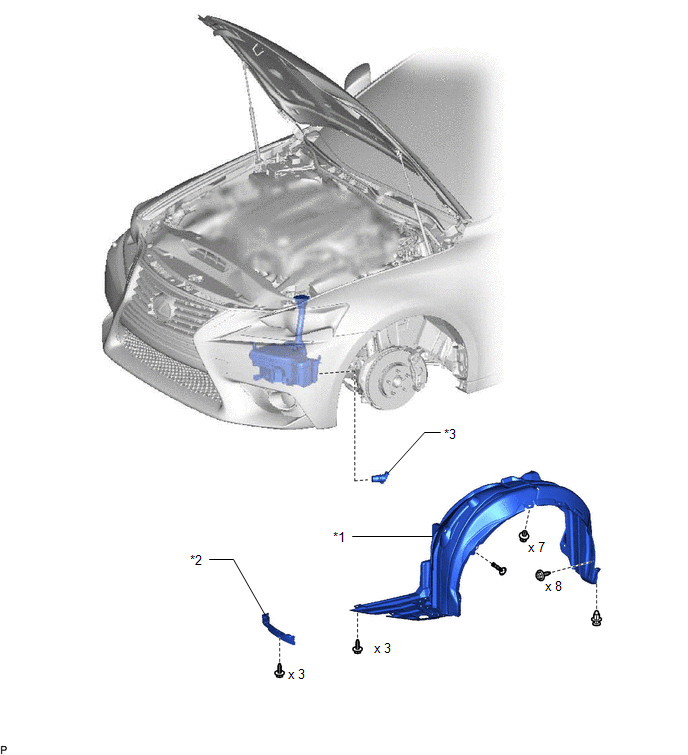

Fig 1: Washer Motor Replacement Components [04/2013 - 10/2016]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER LINER LH
*2
FRONT WHEEL OPENING EXTENSION PAD LH
*3
WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
-
-
