Removal [10/2016 - 10/2017]: Procedure

for Standard:

Refer to REMOVAL [10/2016 - 09/2020]

for Sport Package:

Refer to REMOVAL [10/2016 - 09/2020]

for 8AR-FTS:

Refer to PROCEDURE - Step 11

for 2GR-FSE:

Refer to PROCEDURE - Step 10

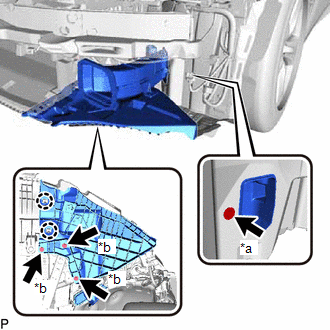

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Screw
   *b	Bolt

2. Remove the 3 bolts.
3. Disengage the 2 claws to remove the cool air intake duct.

See step  4

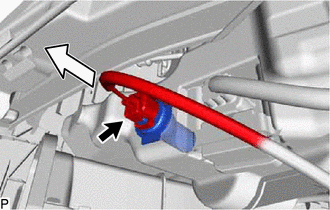

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the level warning switch assembly as shown in the illustration.
