Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY (for Standard)

    Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE FRONT BUMPER ASSEMBLY (for Sport Package)

    Refer to REMOVAL [04/2013 - 10/2016]

  3. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  4. REMOVE COOL AIR INTAKE DUCT
    1. Remove the screw.

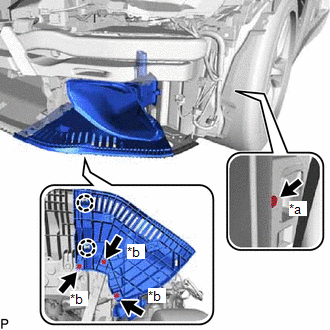

      GTY456369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
      *b Bolt
    2. Remove the 3 bolts.
    3. Disengage the 2 claws to remove the cool air intake duct.
  5. DRAIN WINDSHIELD WASHER FLUID

    See step  4

  6. REMOVE LEVEL WARNING SWITCH ASSEMBLY
    1. Disconnect the connector.

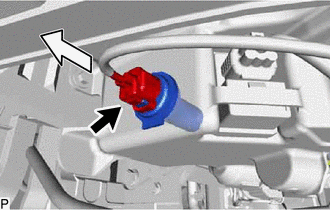

      GTY464742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the level warning switch assembly as shown in the illustration.
