Removal [10/2016 - ]: Procedure

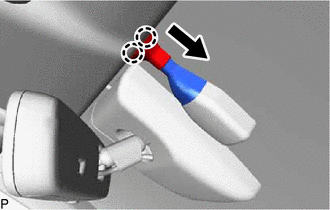

1. Disengage the 2 claws and slide the rain sensor cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

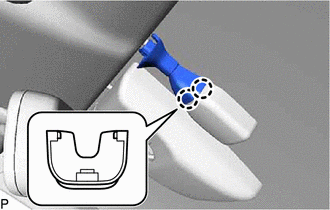

2. Disengage the 2 claws to remove the rain sensor cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

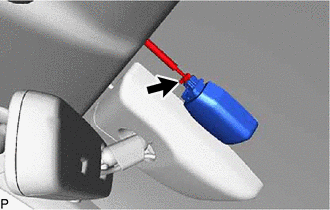

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Release the stopper by pulling the stopper down and remove the rain sensor as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

HINT:

• The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign mattes.
• Check that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue before installing the rain sensor.
• If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.
