Installation [10/2016 - 09/2020]: Procedure

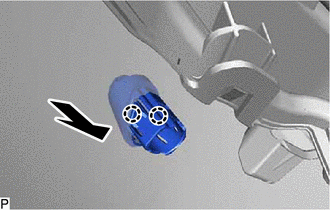

1. Engage the 2 claws to install the headlight washer cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

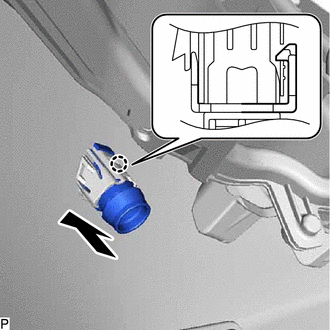

1. Engage the claw to install the headlight washer actuator sub-assembly LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

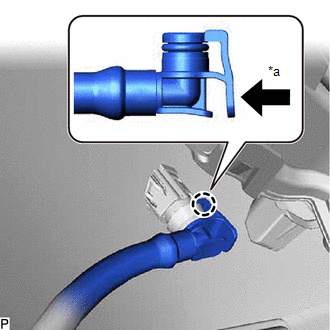

2. Engage the claw to connect the headlight cleaner hose as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

HINT:

Use the same procedure as for the LH side.

for Standard:

Refer to INSTALLATION [10/2016 - 09/2020]

for Sport Package:

Refer to INSTALLATION [10/2016 - 09/2020]
