Components [04/2013 - 10/2016]

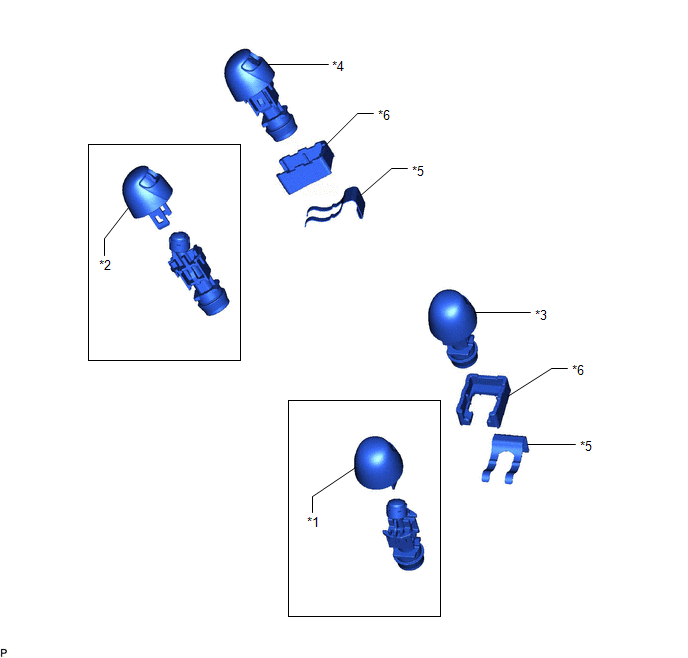

Fig 1: Headlight Cleaner Nozzle Replacement Components [04/2013 - 10/2016]
GTY469071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEADLIGHT CLEANER WASHER NOZZLE COVER LH *2 HEADLIGHT CLEANER WASHER NOZZLE COVER RH
*3 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH *4 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH
*5 NO. 3 HEADLIGHT CLEANER CLAMP *6 NO. 2 HEADLIGHT CLEANER CLAMP
