Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY (except 2UR-GSE)

    for Standard:

    Refer to REMOVAL [09/2020 - ]

    for Sport Package:

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE HEADLIGHT CLEANER CONTROL RELAY (except 2UR-GSE)
    1. Disconnect the connector.
      GTY627003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.
  3. REMOVE FRONT WHEEL LH (for 2UR-GSE)

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (for 2UR-GSE)

    See step  3

  5. REMOVE FRONT FENDER LINER LH (for 2UR-GSE)

    See step  4

  6. REMOVE HEADLIGHT CLEANER CONTROL RELAY (for 2UR-GSE)
    1. Disconnect the connector.

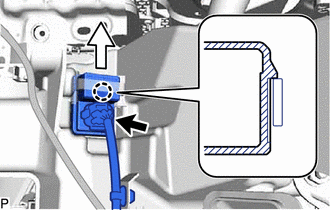

      GTY1083555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.
