Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

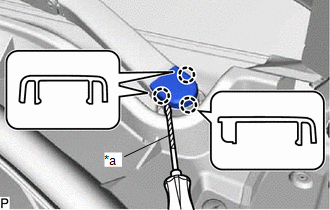

    1. Using a screwdriver, disengage the 3 claws to remove the front wiper arm head cap.
      GTY464441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      • Tape the screwdriver tip before use.
      • Use the same procedure for the RH side and LH side.
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

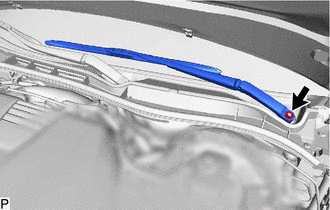

    1. Remove the nut and front wiper arm and blade assembly LH.
      GTY464628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

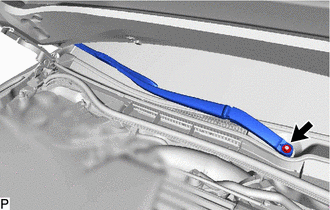

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Remove the nut and front wiper arm and blade assembly RH.
      GTY464625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

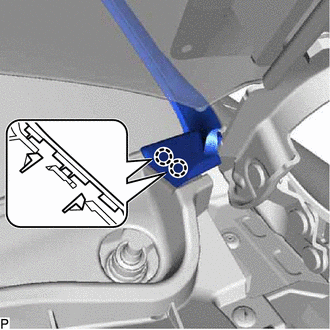

    1. Disengage the 2 claws and separate the windshield outside moulding LH.
      GTY470376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

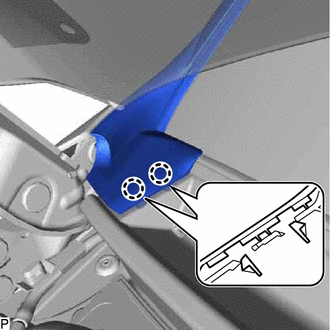

    2. Disengage the 2 claws and separate the windshield outside moulding RH.
      GTY464626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

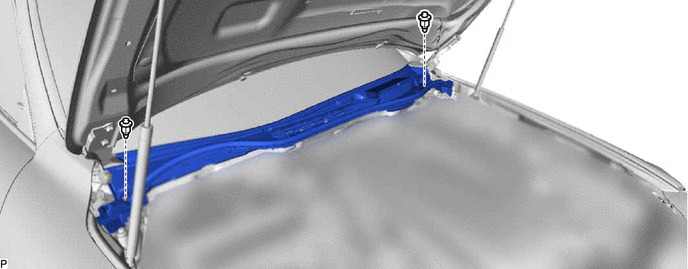

    3. Remove the 2 clips.
      GTY464605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

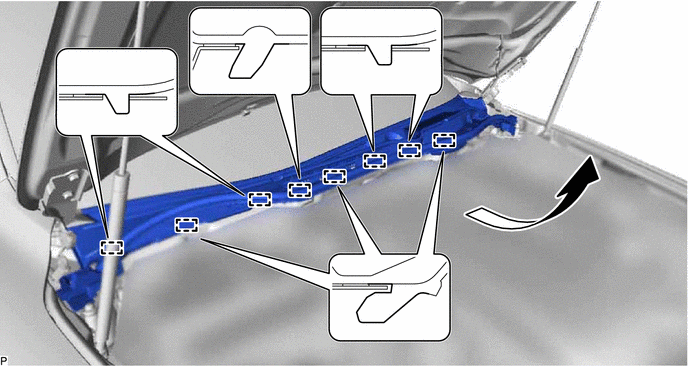

    4. Disengage the 8 guides as shown in the illustration.
      GTY464606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

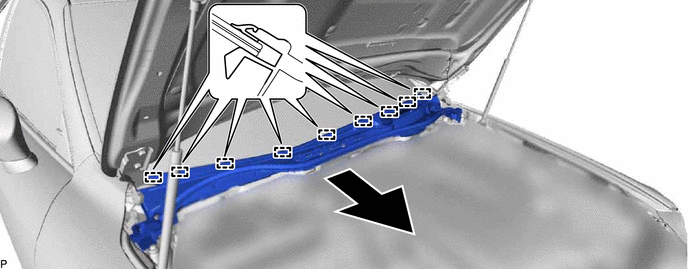

    5. Disengage the 9 guides and remove the cowl top ventilator louver sub-assembly as shown in the illustration.
      GTY470372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. w/ Windshield Deicer System:

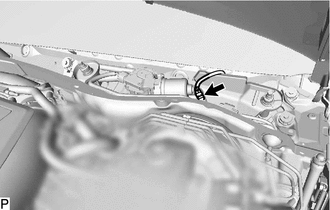

      1. Disconnect the connector.
        GTY464665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

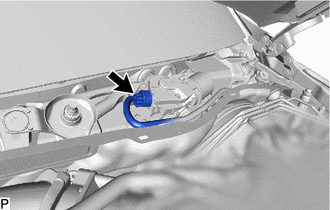

    2. Disconnect the connector.
      GTY470385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

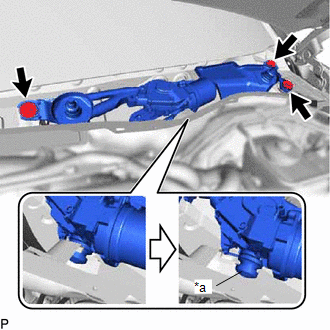

    3. Remove the 3 bolts.
      GTY462212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet
    4. Disengage the motor grommet as shown in the illustration and remove the windshield wiper motor and link assembly.
      NOTE:

      Be careful not to damage the windshield when removing the windshield wiper motor and link assembly.

  6. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

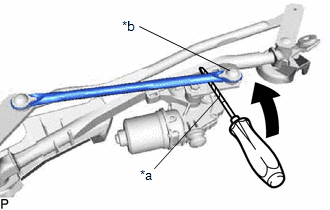

    1. Using a screwdriver, separate the windshield wiper link No. 1 rod from the pivot of the windshield wiper motor assembly as shown in the illustration.
      GTY459697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Pivot of the windshield wiper motor assembly

      HINT:

      Tape the screwdriver tip before use.

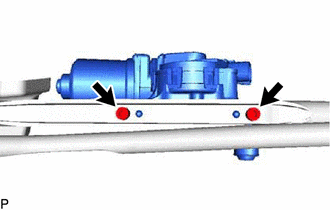

    2. Using a T30 "TORX" socket wrench, remove the 2 bolts and windshield wiper motor assembly from the windshield wiper link assembly.
      GTY464662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
