Components [09/2020 - ]

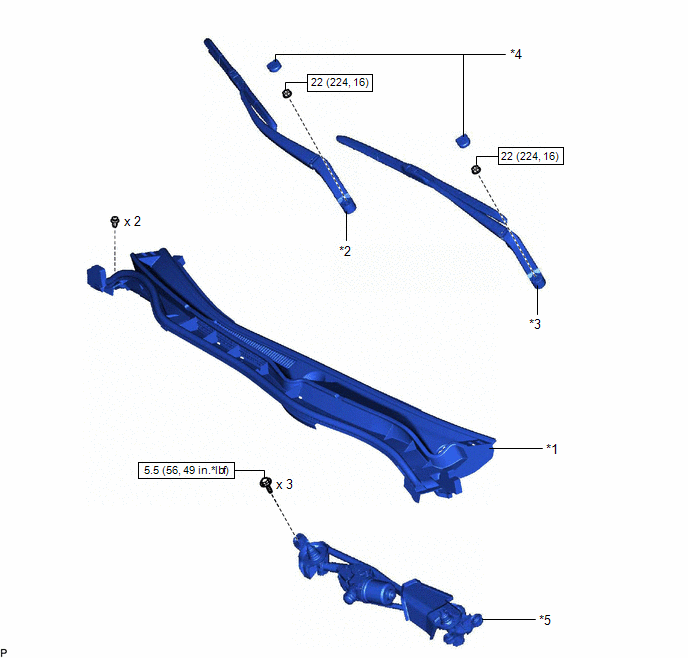

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications [09/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*3	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*4	FRONT WIPER ARM HEAD CAP
*5	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications [09/2020 - ] (2 Of 2)

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WIPER LINK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
