Removal [04/2013 - 08/2015]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 6

  3. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2017]

  4. REMOVE KICK DOWN SWITCH ASSEMBLY
    1. Disconnect the clip from the body.

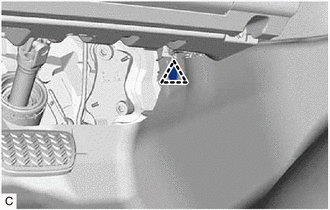

      GTY463924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn back the floor carpet.
      GTY470217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the kick down switch assembly connector.
      GTY470450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the clamp from the kick down switch assembly.
    5. Remove the nut, 2 bolts and kick down switch assembly from the body.

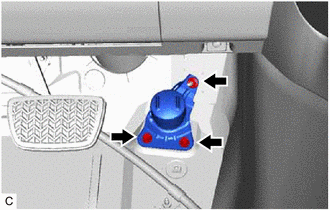

      GTY464966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
