Installation [04/2013 - 08/2015]: Procedure

  1. INSTALL KICK DOWN SWITCH ASSEMBLY
    1. Install the kick down switch assembly to the body with the nut and 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the clamp to the kick down switch assembly.
    3. Connect the kick down switch assembly connector.
    4. Install the floor carpet to the original position.

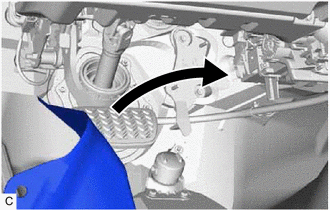

      GTY463925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the clip to the body.
  2. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to INSTALLATION [04/2013 - 10/2017]

  3. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 9

  4. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 13
