Components [10/2016 - ]

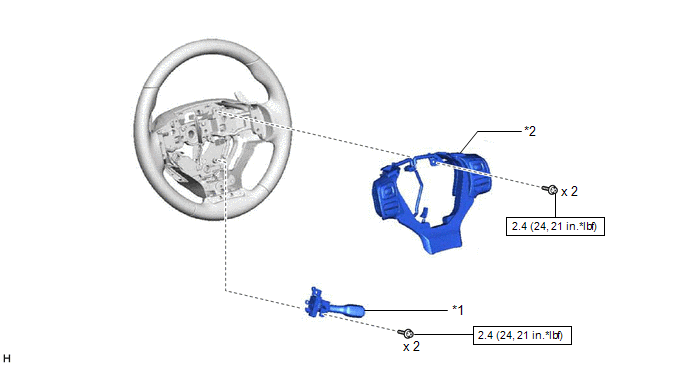

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications [10/2016 - ]
GTY684468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CRUISE CONTROL MAIN SWITCH *2 STEERING PAD SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
