Components [04/2013 - 09/2020]

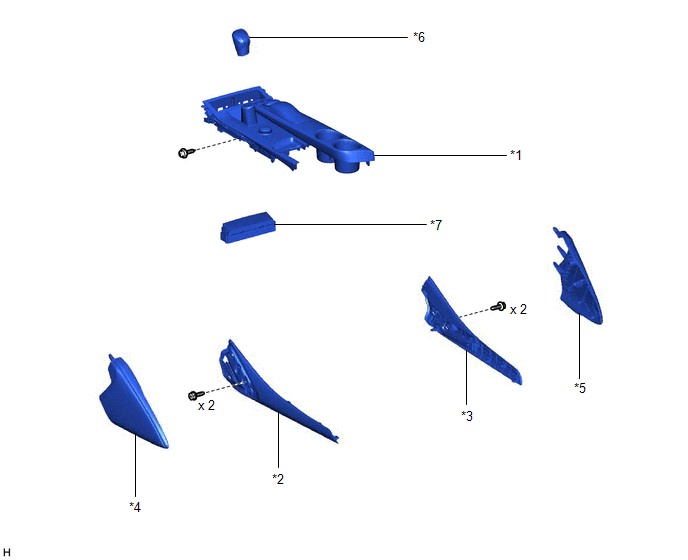

Fig 1: Steering Heater Switch Replacement Components [04/2013 - 09/2020]
GTY461313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CONSOLE PANEL SUB-ASSEMBLY *2 FRONT PANEL GARNISH LH
*3 FRONT PANEL GARNISH RH *4 INSTRUMENT PANEL FINISH PANEL END LH
*5 INSTRUMENT PANEL FINISH PANEL END RH *6 SHIFT LEVER KNOB SUB-ASSEMBLY
*7 STEERING HEATER SWITCH (REFRESHING SEAT SWITCH) - -
