Disassembly [04/2013 - ]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY (for Manual Tilt and Manual Telescopic Steering Column with Steering Lock Actuator Assembly)
    1. Secure the steering column assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

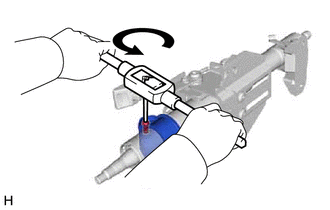

    2. Using a drill, drill a hole in the steering lock set bolt and insert a screw extractor.
    3. Using the screw extractor, remove the steering lock set bolt and steering lock actuator assembly.
      GTY460386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STEERING LOCK ACTUATOR ASSEMBLY (for Power Tilt and Power Telescopic Steering Column with Steering Lock Actuator Assembly)

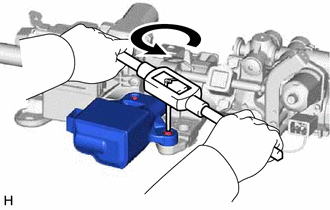

    1. Using a drill, drill a hole in each steering lock set bolt and insert a screw extractor.
    2. Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator assembly.
      GTY469456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic Steering Column)

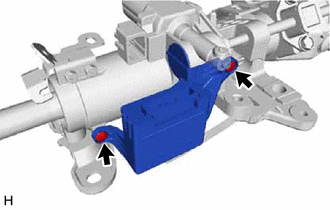

    1. Remove the 2 screws and multiplex tilt and telescopic ECU.
      GTY460391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
