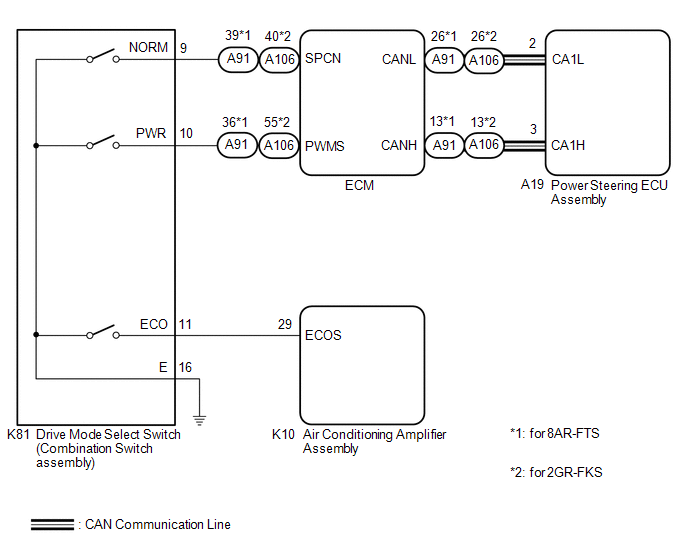

Drive Mode Select Switch Circuit [10/2017 - 11/2021]: Wiring Diagram

GTY810377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
