Components [04/2013 - 09/2020]

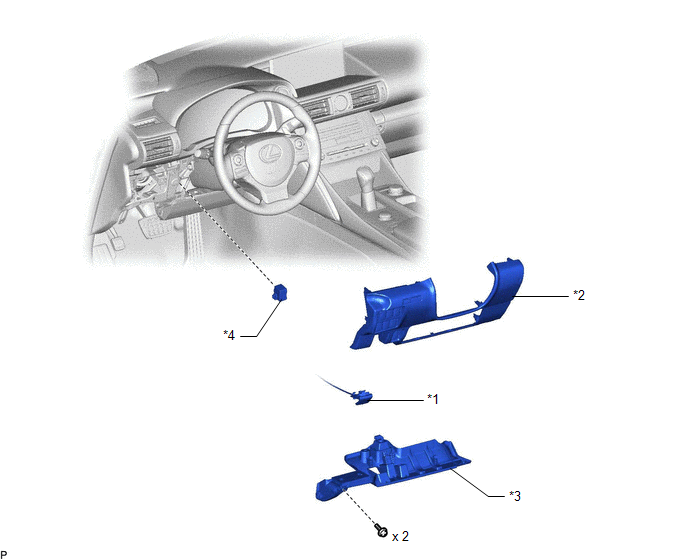

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
GTY464567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *2 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*3 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *4 SKID CONTROL BUZZER ASSEMBLY
