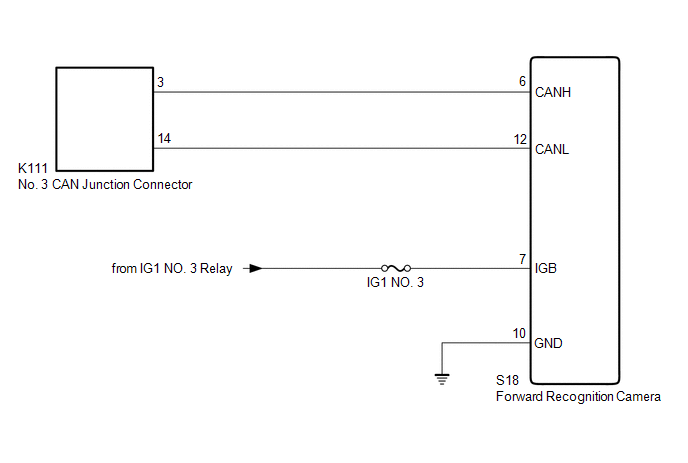

DTC U023A: Lost Communication with Front Camera Module [09/2018 - 09/2020]: Wiring Diagram

GTY779706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
