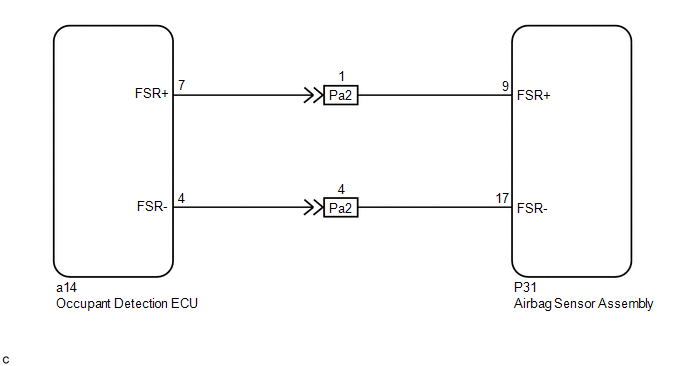

DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction [04/2013 - 09/2020]: Wiring Diagram

GTY460256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
