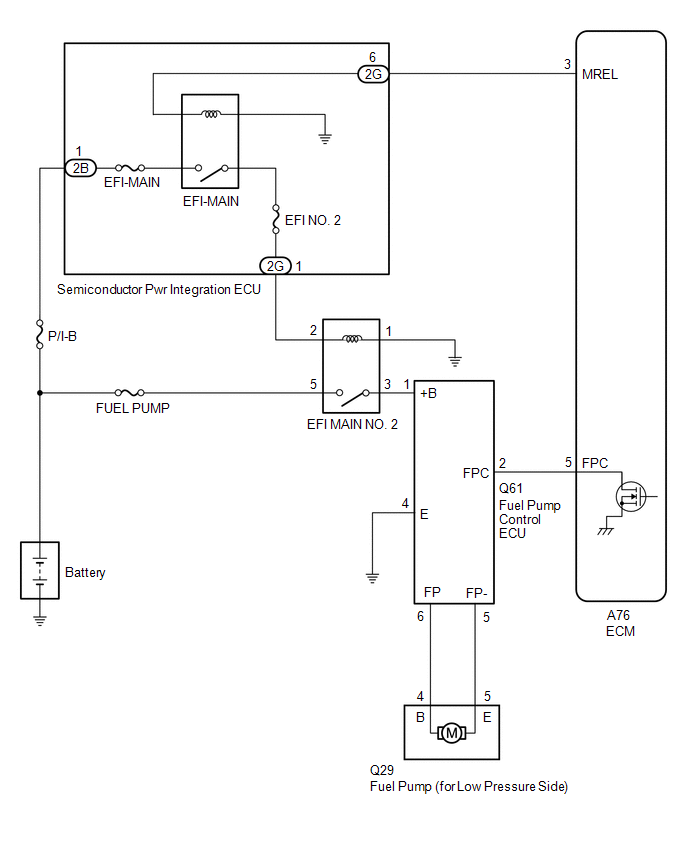

Fuel Pump Control Circuit [08/2015 - 10/2017]: Wiring Diagram

GTY651070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
