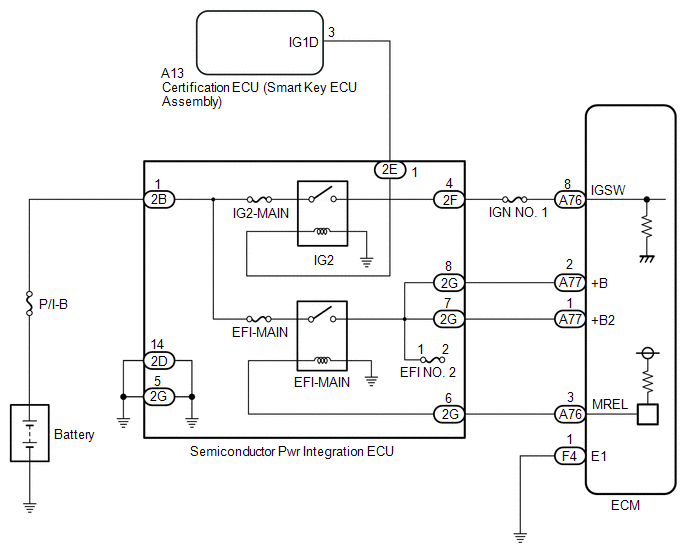

ECM Power Source Circuit [04/2013 - 10/2017]: Wiring Diagram

GTY656172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
