Engine Control System (2GR-FSE) - Diagnostic Codes (1 Of 6)
>>
SFI System
>>
DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [04/2013 - 10/2017]
>>

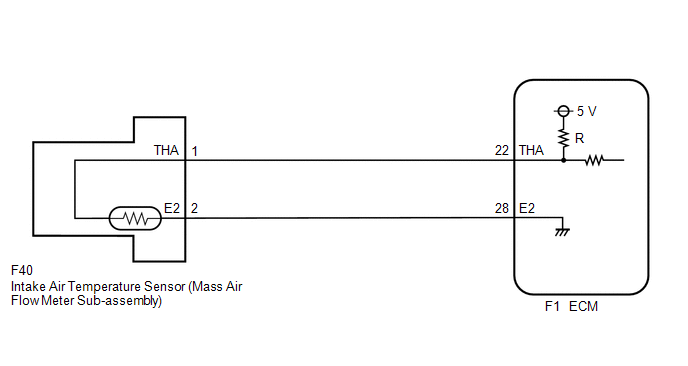

Wiring Diagram
DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [04/2013 - 10/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
